Channel — Deliver ask questions to a visitor in the public chat page and bridge the reply back.

​
web

Studio plugin — The entry-gate and words panels on a web route’s drill-in. The web channel hosts a standalone chat page for anonymous visitors: it serves the page, mints a session cookie, and bridges each message through the conversation bridge — no vendor account, and no account for the visitor. Unlike the messaging channels it is both the chat surface and the transport, and it holds no vendor secret: the doors are public and authenticate the visitor by the session cookie alone.

​
Enable it

manifest.yml
The only backing store is a plugin-owned Redis holding the session registrations, the transcripts, and the pending-question records (CHANNEL_WEB_REDIS_URL, falling back per-field to the shared TAI_DEFAULT_* namespace).

​
Configuration

The CHANNEL_WEB_ env group. Defaults suit a typical deployment; the transcript, stream, and entry-gate caps are the tunables.

​
Create a route and open the page

A web route binds an identity — an arbitrary name you choose — to the turn that answers it.
In Studio, pick web as the route’s Channel; the Our identity field then shows this hint. The route’s turn runs as the --execution-key you bind here; mint a least-privilege key scoped to just what the route needs, the same way a phone channel does in WhatsApp to an agent. Send visitors to the chat page for that identity:

​
Agent-sent cards and lists

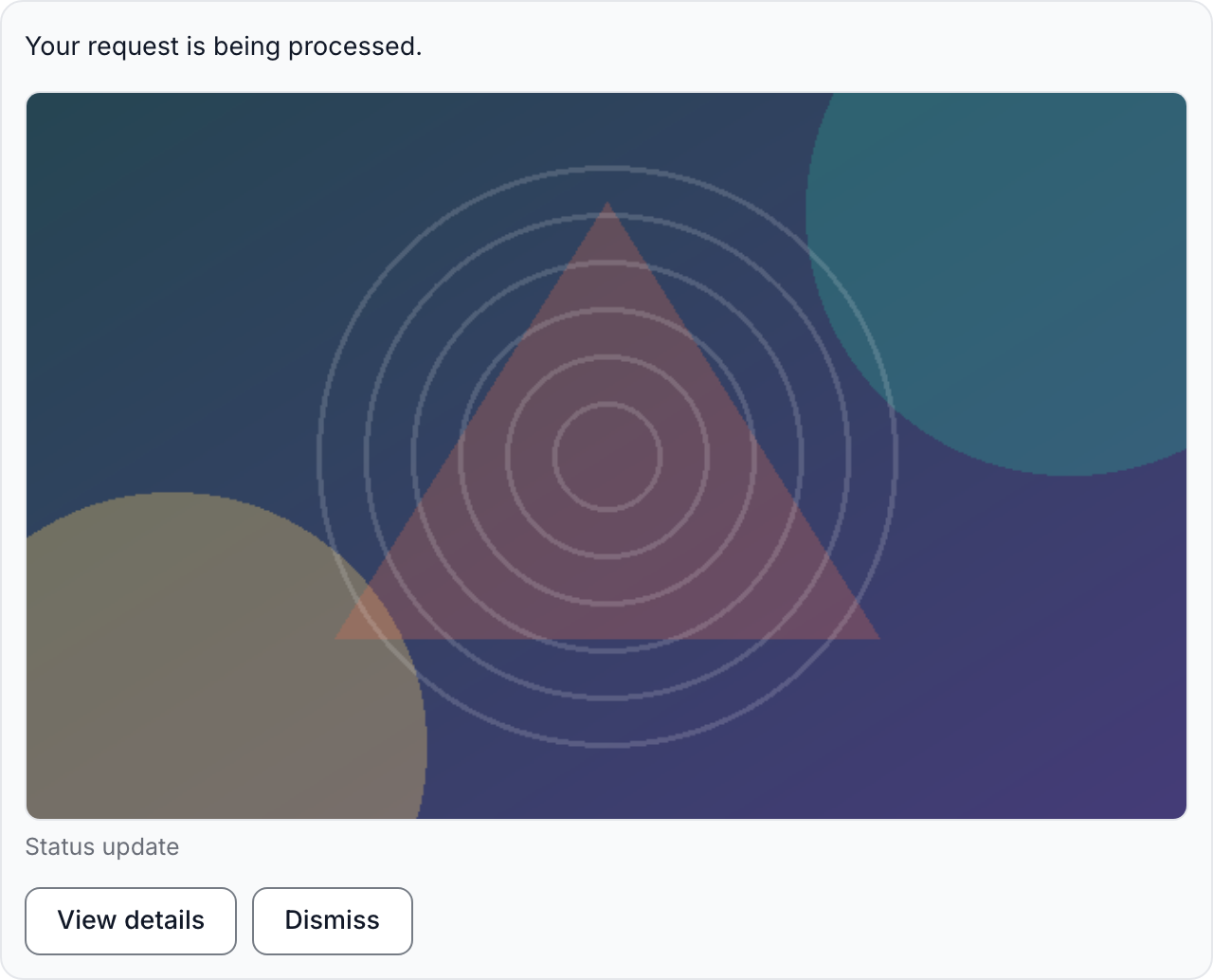

A notify_user addressed at a web visitor carries richer content than plain text. A notification’s media renders as a media card — this channel renders the whole media vocabulary as real UI:
  • an image inline (an absolute-https source; an http: or data: image is refused loudly — the page renders an image only from an https source),
  • a document as a download card (its filename is the label, its caption a secondary line, with a download affordance),
  • a video and an audio item as native <video>/<audio> players,
  • a link as a safe outbound anchor (a new tab, rel="noopener"), rather than folded into the body text.
A notification’s options renders a tappable option list (at most 10). Options are typed: a reply chip sends its own text through the message door as an ordinary visitor message — so it enters the conversation exactly as if the visitor had typed it — and, when the author set an id, that id rides the send as params.reply_id so the target reads which option was chosen; a reply’s optional description renders as a secondary line. A link option is a button-styled action that opens its URL in a new tab (rel="noopener") and submits nothing — visually distinct from a reply chip. The sectioned alternative, sections, renders titled groups of reply rows. An interactive card may also carry a media header above the body and a muted footer beneath it. A notification’s location renders as a map-pin element — readable coordinates, any name/address, and an OpenStreetMap link built from the coordinates alone (no external map tiles, so the page’s CSP fetches nothing cross-origin). options, sections, location, header and footer combine with media on one card. Templates are not supported — a template is a vendor construct, refused loudly on this channel. A media card: an image with a caption and tappable option chips
Rendering a remote card image makes the visitor’s browser fetch it from the image host, which reveals the visitor’s IP address and request timing to that host (the page sends no Referer). Point card images only at a host the visitor may reveal themselves to.

​
Inbound attachments

A visitor can attach files to a message — an image, a document, an audio clip, or a video — from the composer’s attach button, by dragging a file onto the conversation, or by pasting an image. Each file is uploaded on its own, ahead of the send: the page shows a preview and a per-file progress indicator, and the visitor can cancel an upload in flight or remove a ready file before sending. Sending the message references the uploaded files, which then ride the turn as typed attachments — a tool target receives them on its payload under the attachments key (the first attachment also echoed on the media_* params), and a caption-less send is delivered as a media-only message. The composer with a ready attachment in its tray, above the attach control and the message input The upload is a two-step exchange: the file is streamed to the upload door, which returns a same-origin reference the message send binds to the turn. The visitor’s own attachments then render inline in their transcript — an image or player in the bubble, a document as a download card — and replay for a returning visitor exactly as any other message. A visitor's own message on their side of the transcript: the inbound image and a document download card Which types are accepted and how large a file may be are the deployment’s media-ingestion settings (the MEDIA_INGEST_ env group): each kind carries its own byte cap and its own allowlist of accepted types. A file over the cap, of a disallowed type, or that cannot be stored is refused with an inline message on the file itself — never a silent drop.

​
Ask-less forms

A notify_user carrying a schema renders an ask-less form card: the message is the form’s prompt, the schema draws the same schema-driven widget an ask form question uses — but nothing waits on it. There is no deadline, no timeout, and no pending interaction; the card simply sits in the conversation, and a submission enters it as an ordinary participant message: the agent sees a label: value text (labels come from the schema stored server-side; a tool target additionally receives the structured values on its payload under a form key). schema requires a non-blank message (the form needs a prompt), combines with media and a location on the same card, and excludes options/sections and template — one message, one interactive surface. The card settles like an option list, not like a question: submitting shows a local “Sent” badge and the form stays fillable — a visitor may revise and submit again, and each submission is its own message. The card is submittable for as long as it can replay in the transcript (the submission token stored server-side ages out with the transcript itself); after that, a submission is answered with a uniform not-found and the card says the form is no longer available. Submitted values are transport, never validated: the platform bounds their size and nesting but does not check them against the schema — treat them exactly as you treat typed participant text.

​
Form words

A form question or an ask-less form card draws the caller’s wording where it is set, and the widget’s own English where it is not:
  • form.update_failed replaces the line shown when a form reaction is refused; its {reason} is the reaction door’s own reason, and is empty when the door gave none.
  • form.step_progress replaces a stepped form’s “Step 1 of 2” line; it fills {step} and {steps}.
  • For each field under form.fields: required is the line shown when a required value is missing, invalid the line for a value of the wrong shape, true_label and false_label the words a yes/no value reads back as on a review page, and add_item, remove_item, item_label (with {n}, the item’s number) and no_items the words of a list field.
  • answer.rejected replaces the line shown when an answer is refused and may be given again, and answer.rejected_final the line shown when the question can no longer be answered; each fills {reason} with the interactions door’s own reason, empty when it gave none.
The widget draws no form.error_line and no length_hint: it shows each field’s own error next to the field.

​
Unavailable messages

If a stored transcript entry cannot be rendered — a corrupt record in the replay stream — the page shows a persistent “This message is unavailable.” notice in its place, ordered where the entry belonged, rather than a silent gap in the history. The server emits a dedicated chat.unavailable frame for it (carrying the entry id and its ordering timestamp) on both the backlog replay and the live tail; the corruption is logged at WARNING. This is distinct from the transient error banner shown when a frame fails to parse on the page itself.

​
Answer and reaction forwarding

A web answer or a form reaction is forwarded server-side to the stored callback URL of the pending question. Before anything is sent, that stored URL is pinned against the callback prefix the platform mints under ({INTERACTIONS_PUBLIC_BASE_URL}/api/interactions/callback/): only that exact shape — the same scheme, host and port, no userinfo, query or fragment, one ticket segment — is accepted. A record outside it, or a deployment with no public base, is refused: an ERROR log names the interaction, the reason and the host (never the URL, which carries the ticket), the claimed question is not restored, nothing is sent, and the door answers 500. When the interactions door refuses a forwarded answer (400), the web door answers 400 with code answer_refused while the question may be answered again, or answer_retries_spent once it has been refused as often as it may be and is gone. When the interactions door refuses a forwarded reaction, the web door answers the same status. Either body carries reason, the interactions door’s own error, when that door gave one; the widget fills it into the caller’s sentence as {reason}. For a question asked as sensitive, the chat.answered frame records that the question was answered and carries no answer. Query parameters on the chat page URL are captured with the visitor’s session and delivered to the turn. A route whose target is a tool receives them on its payload under a params key — string values, reachable from start_expr as .params.<name>:
Bounds are enforced at the door — at most 16 parameters, each key matching ^[A-Za-z0-9_-]{1,64}$, each value at most 512 characters, the whole set at most 2048 bytes — and a violation is a refused page, never a silent trim: every web door (the page, messages, forms and answers) refuses an over-bound set, because each answers a waiting visitor. The names tai_pair and tai_entry are reserved and stripped before storage. A later navigation carrying parameters replaces the stored set; starting a new conversation clears it. Parameter values are never logged, and params is present on the payload only when the entry carried parameters. When the visitor answers a pending question, the same parameters reach the asker as params beside the answer.
A link parameter is transport, nothing more — no signature, no expiry, no interpretation. When a tool must trust a value, it issues its own secret token, delivers it in the link, and checks it in its own store. jq gating in start_expr runs before the tool does:

​
Entry gate

A web route can be gated: the chat page is served only to a navigation carrying a live entry code on ?tai_entry=<code>. An ungated route is unchanged — the gate is opt-in per identity. Entry codes are operator-minted, multi-use, optionally expiring, revocable, and hashed at rest: only a code’s hash is stored, and the raw code exists only in the mint response and the visitor’s link. A missing, unknown, expired, or revoked code — or a client that has guessed too often — is refused with one page, HTTP 403, one wording: the gate is no oracle. The gate is checked only where a session is minted (opening the page or starting a new conversation); an existing session is admitted without a code.
The gate admits whoever holds a live code — never who they are. Forwarding the link forwards entry. And revocation cuts new entries only: a visitor already admitted keeps a live session until its own TTL lapses. To cut off a live visitor you end their session, not the code they entered with.

​
Operating the gate

In the Studio, a web route’s drill-in carries the Entry gate panel: the gate toggle, the live codes, and the mint and revoke dialogs (the plugin’s studio-plugin item web, shown where the deployment lists tai42_channel_web under studio_plugins). The same lifecycle runs through four authed management doors — call them with a platform API key.
1

Enable the gate

2

Mint a code and distribute the link

The raw code is returned once; only its hash (code_id) is stored.
Distribute the chat URL with ?tai_entry=<code> appended. A code is multi-use: everyone holding the link enters.
3

List codes

Codes are listed by hash — a raw code is never re-readable.
4

Expire or revoke

​
Words

A web route can set its own words, keyed by its identity like the entry gate. Every member is optional; a member left unset draws the built-in English.
  • page holds the chat page’s refusal pages, each a heading (the page title) and a text: not_a_navigation (the chat URL was loaded by something other than a top-level navigation), link_invalid (the link’s parameters break a bound), entry_refused (a gated route and no live entry code) and page_unavailable (the page bundle cannot be served).
  • transport holds the sentences the widget draws when one of its requests is refused: session_ended, wrong_site, not_listening, already_answered, busy, not_switched_on, too_long and not_sent (each with {subject}), failed, attachment_gone, attachment_already_sent, entry_refused, and answer_refused and answer_retries_spent (each with {reason}, used when the question set no answer.rejected / answer.rejected_final). The subject_message, subject_answer, subject_form and subject_request members are the words {subject} is filled with. The attachment tray’s upload sentences are fixed and are not route words.
A server’s error string is never drawn as one of these sentences: it reaches the end user only as {reason}. The page’s other words and its <title> are not per-route words; the title is CHANNEL_WEB_PAGE_TITLE. In the Studio, the same drill-in carries the Words panel beside the entry gate: one input per member, a save, and a clear. The same words run through three authed doors:
A refused body answers 422 naming the first refused member (invalid request body: <member>: <reason>). A body that sets nothing is refused the same way: an empty object, an empty page or transport object, or a refusal page with neither heading nor text. To go back to the built-in English, clear the words. The words are part of the platform backup as the channel_web_words section: an import validates the whole section before it writes anything, then replaces each listed route’s words.

​
Message ids and addresses

The conversation bridge records every message this channel sends to a visitor. These are the ids and addresses it records:
  • A message POST passes the id it is deduplicated by as the medium message id; the answer door passes the id of the chat.answered entry it writes.
  • resolve_address returns the web route identity and the visitor id, from either addressing: the composite "<identity>:<visitor-id>" recipient, or the route identity beside a bare visitor id. A completed send reports the same pair, the one the message door passes for that visitor, and the id of the transcript entry it appended.
  • The widget has no reply action, so a visitor message never quotes an earlier message: it carries no reply_to.

​
Working-on-it signal

While a turn runs, the chat page shows its own typing bubble from the moment the visitor’s message is sent until the reply lands — driven entirely by the page, with no server-driven frame. Because the page owns the indicator it never lapses mid-turn, so this channel opts out of the platform’s server-side working-on-it refresh.

​
Flood control

Every web door is public, so the app’s rate limiter throttles it per caller. The plugin declares the budgets on its routes: the chat doors (the page, its assets, the stream, the session rotate, messages, forms, answers and reactions) charge the channels_web family at 120 requests a minute and 30 per 10 seconds, and the upload door charges channels_web_uploads at 20 and 5. The families are declared, so they hold whatever mount base the plugin is installed under. An operator tunes either field by field, for example TAI_RATE_LIMIT_FAMILIES__CHANNELS_WEB__LIMIT=240. The published API describes each door’s real body: the page is text/html, an asset is application/octet-stream, and the stream is text/event-stream.

​
